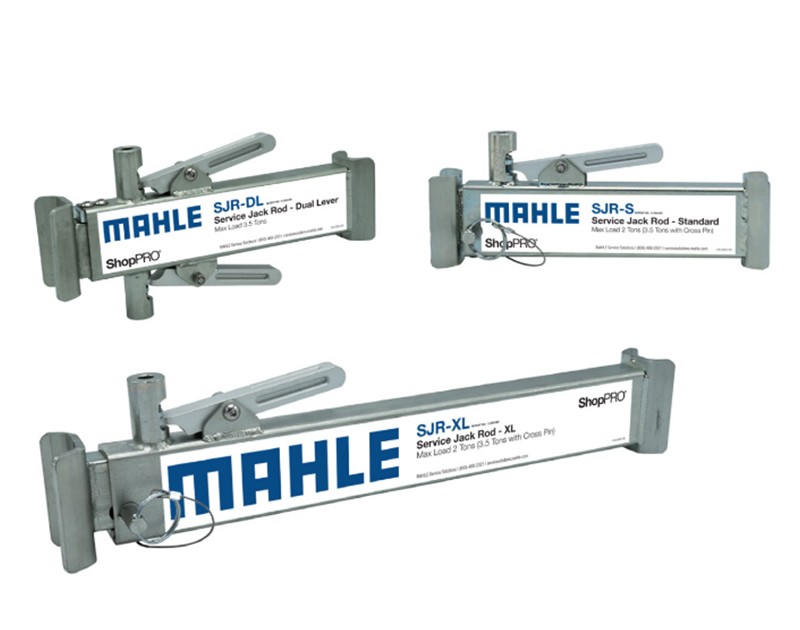

The service jack rod is a compact, innovative tool designed to enhance the safety and versatility of traditional floor jacks. By securely locking into place at adjustable heights, it transforms a standard jack into a stable support system, eliminating the need for bulky jack stands.
FEATURES:
- Eliminates the need for bulky jack stands
- Secure locking mechanism locks into place at your desired height, even if the floor jack fails
- Attaches to a floor jack using the optional jack rod stand mount
- Jack rod mount (485 80195 00)
- Jack rod XL mount (485 80197 00)
- High load capacity
- Adjustable height
- Patent-protected design
- Ideal for workshops and mobile repairs
Service Jack Rod Specifciations
Part number 485 80196 00
Height range 8 - 14 in. (20.3 - 35.5 cm.)
Load capacity 2 tons (3.5 ton with cross pin)
Locking Mechanism Manual locking pin
Application General automotive use

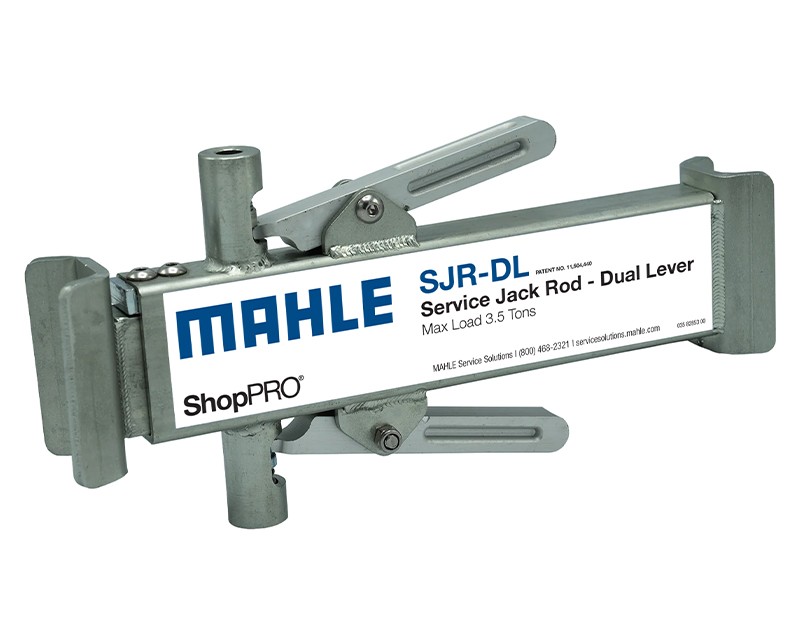

Part number 485 80190 00
Height range 8 - 14 in. (20.3 - 35.5 cm.)
Load capacity 3.5 tons
Locking Mechanism Dual lever (no pin needed)
Application Commercial / fast paced use

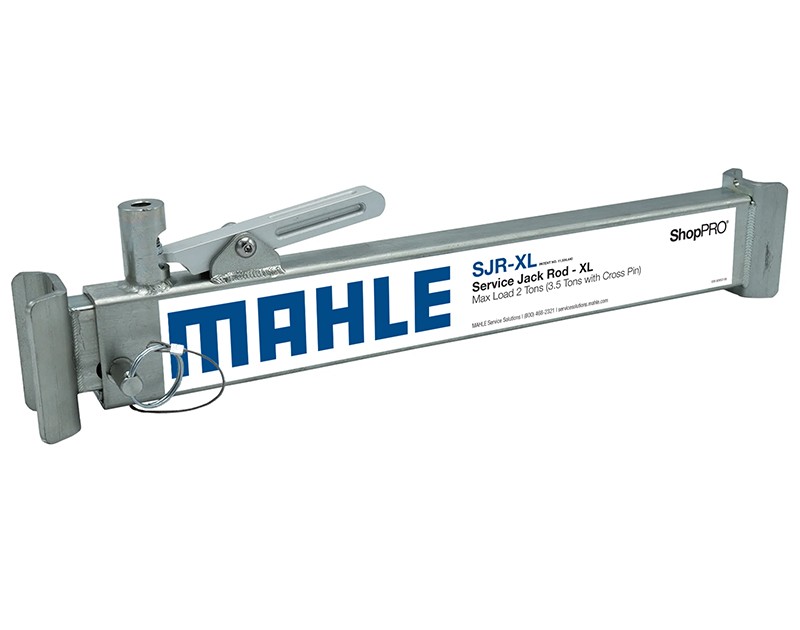

Part number 485 80189 00
Height range 14 - 24 in. (35.5 - 60.9 cm.)
Load capacity 2 ton (3.5 ton with cross pin)
Locking Mechanism Manual locking pin
Application Taller vehicles or lifted cars
