FluidPRO® Brake Fluid Exchange Systems
FluidPRO® brake fluid flush systems deliver complete brake fluid exchange using simple processes.
BFX-10 Brake Fluid Flush System
FEATURES
- Fitted with an infinitely variable pressure regulator
- Suitable for ABS, ESP, EDS and SBC
- Hydraulic pump
- Pulsating fluid flow to pressurize air bubbles out of the braking system
- Automatic switch-off on empty container
- Pressure-less decoupling from vehicle
- Venting of device during container changeover not necessary
- Portable and light weight for easy hand held mobile use
- One-man operation of the mobile device is possible
- With Two Universal adapters included (P/N 425 80016 00) / Without adapters: P/N 425 80015 00
Model Name: BFX-10 | Part Number: 425 80016 00
Product Specifications
Working Pressure 5-50 psi
Weight 15.4 lbs
Power Supply 110V, 60Hz
Length 15.3 in
Width 9.8 in
Height 16.1 in
Filling Hose Length 11.5 ft
Max. Container Size 13.8L / 1 gal
Product Flyer & Operations Manual
BFX-10 Flyer [PDF; 612 KB]
BFX-10 Operations Manual [PDF; 2385 KB]

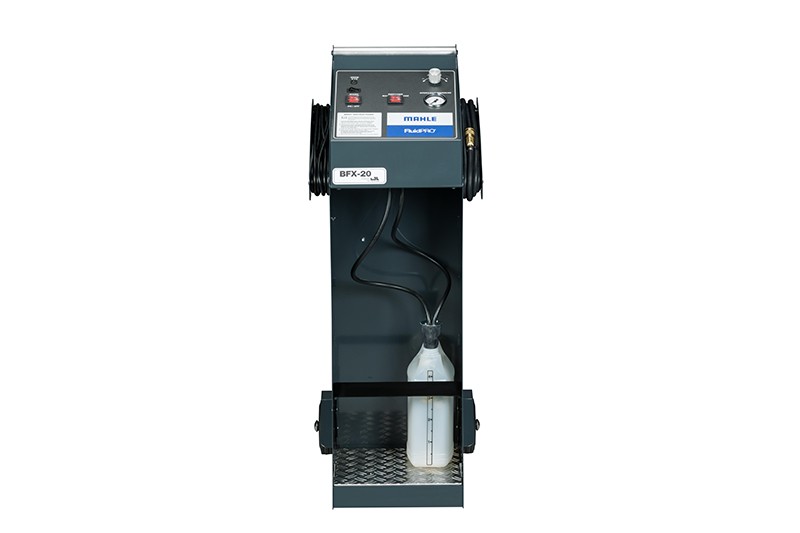

BFX-20 Brake Fluid Flush System
FEATURES
- Fitted with an infinitely variable pressure regulator
- Suitable for ABS, ESP, EDS, and SBC
- Hydraulic pump
- Pulsating fluid flow to pressurize air bubbles out of the braking system
- Automatic switch-off on empty container
- Pressureless decoupling from vehicle
- Venting of device during container changeover not necessary
- Additionally fitted with the BFX PLUS extraction system
- One-man operation via mobile device is possible
- Removable tool tray
- Adapters included (P/N 425 80014 00) / Without adapters: P/N 425 80011 00
Model Name: BFX-20 | Part Number: 425 80014 00
Additional Models
425 80011 00, BFX-20 Brake Fluid Flush System, without adapters
Product Specifications
Working Pressure 5-50 psi
Weight 46 lbs
Power Supply 110V, 60Hz
Length 16 in
Width 16 in
Height 40 in
Filling Hose Length 11.3 ft
Max. Container Size 5L / 1.3 gal
Product Flyer
BFX-20 Flyer [PDF; 540 KB]
