MAHLE Service Solutions | Multi-Use Lift Table XL

Built for demanding automotive and industrial tasks, the Multi-Use Lift Table XL offers a 2,200 lb (1,000 kg) lifting capacity and a smooth air-over-hydraulic system. Ideal for engine and battery removal, subframe handling, and fuel tank servicing.

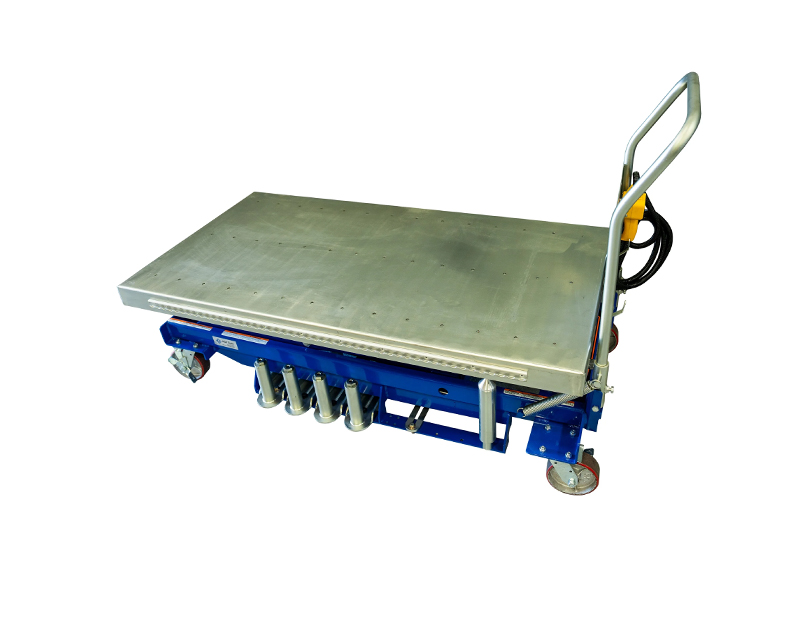

Tabletop provides ample space for handling large engines, batteries, and components
Four caster wheels with swivel and wheel locks allow smooth movement and precise positioning
Folding handle enables easy transport and space-saving storage
Lift range supports a wide variety of service applications
Air-over-hydraulic system delivers consistent, powerful lift performance
Adjustable fixtures offer added height, making the table adaptable to multiple tasks
Integrated fixture rack keeps tools and accessories within reach and neatly stored
Flow control valve ensures smooth lowering, while included ratchet straps secure heavy components

Specifications

Part number 485 80188 01

Lifting Capacity 2,200 lbs (1,000 kg)

Table top dimensions 59 x 31 in (73.6 x 78.7 cm)

Base footprint 65 x 34 in (165.1 x 86.3 cm)

Lift Range (excluding fixture height) 20 to 68 in (50.8 x 96.5 cm)

Fixture Height Adjustment +7 to 11.5 in (17.7 to 29.2 cm)

Lift Mechanism Air-over-hydraulic system

Caster diameter 6 in (15.2 cm)

Weight 715 lb (324.3 kg)

Reccomended Accessories

485 80194 00 Lift table extension (Sold per 1 extension to optimize flexibility, 2x needed for lifting standard battery pack)

485 80191 00 Lift table strut support

485 80192 00 Lift table fixture set (included with table)

485 80193 00 Lift table transmission adapter head
