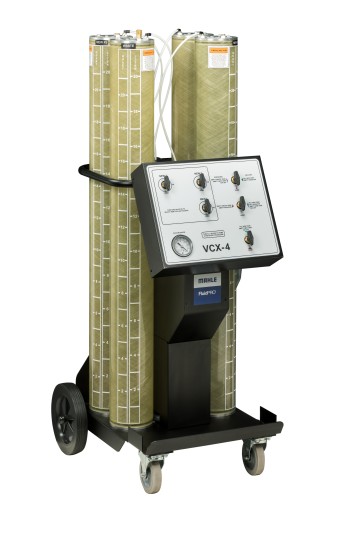

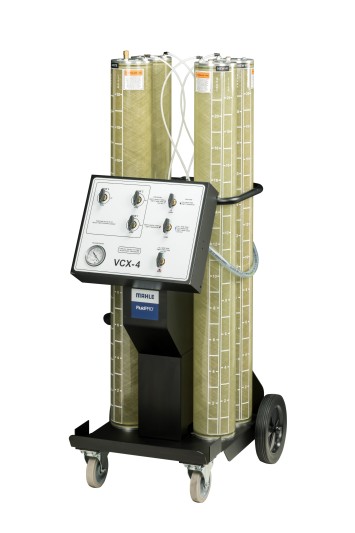

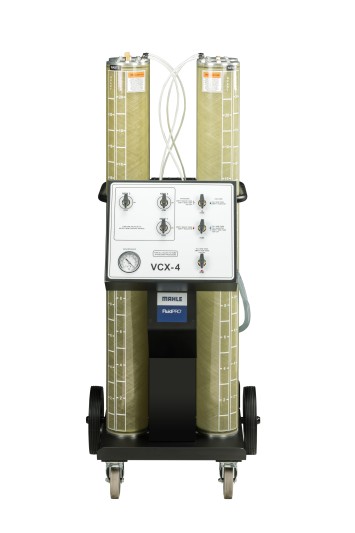

FluidPRO® VCX-4

Vacuum Coolant Exchange System*

Part Number: 470 80020 00

*See 'Additional Models' below for VCX-1

FEATURES

  • Effective. Four transparent, large capacity cylinders; three for new coolant and one for waste.
  • Color-Coded Function Valve. For easy control and operation.
  • Adaptable. Easy coolant selection/changeover for flexible adaptation of most vehicles.
  • Fast. Service cycles of 5-15 minutes for increased productivity.
  • Vacuum Gauge. For complete exchange efficiency.
  • Pressure Relief Valve. Located on waste fluid cylinder for increased safety.
  • No-Leak End Cap Design. Reduces coolant waste.
  • Convenient. Powered by shop air.

Additional Models

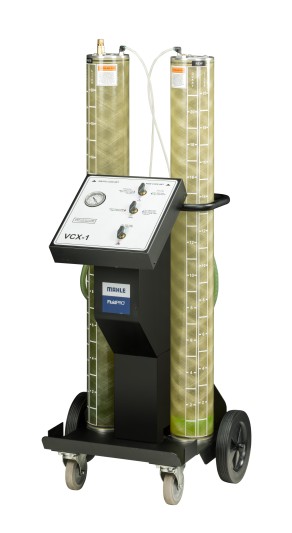

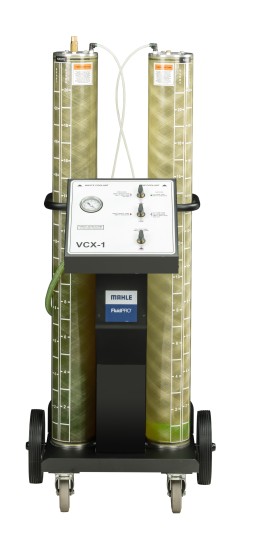

470 80019 00, VCX-1 Vacuum Coolant Exchanger, Two Tube Design

Product Specifications

Adapters 2 Cone plugs; 8 in (20 cm) hose adapter

Controls Ball valves w/ color-match system

Coolant Cylinders 20 quart (18.9 liter) each

Dimensions (H x W x D)

  • VCX-1: 63 in x 28 in x 22.5 in (160 cm x 71 cm x 57 cm)
  • VCX-4: 63 in x 28 in x 29 in (160 cm x 71 cm x 74 cm)

Fluid Tanks / Types Any coolant type (Fast easy changeover)

Hoses Clear, wire reinforced 10 ft. (3 m)

New Fluid Pump Venturi vacuum generator; 28 inHg (0.95 bar) maximum

Power Source Shop air, 55 to 110 psi (3.8 to 7.6 bar)

Process Time 5 to 15 minutes average

Warranty 1 Year–parts & labor

Weight

  • VCX-1: 166 lb. (75 kg)
  • VCX-4: 200 lb. (91 kg)

Recommended Accessories

370 80071 00, VCX Adapter Kit, Consists of cone and hose

370 80095 00, VCX Adapter Kit, for Radiator Pressure Relief´

060 81215 00, VCX Adapter, Cone Plug
