A mobile station designed for the orderly storage, identification and management of multi-fluids. Helps you manage fluids easily, keep your workspace safer and cleaner, and make your job smoother.

Features

  • Equipped with an integrated battery pump, which guarantees a smooth and continuous delivery, with no need for electrical connections
  • Mobile and silent, it can be moved anywhere within the workshop to operate with maximum freedom and efficiency
  • Available in four sizes to match the specific needs of your shop
  • Ability to record oil usage data and send it to a portal for effective management
  • Eliminates the need for small, bulky bottles that are difficult to store and manage
  • Precise dispensing, adjustable to the milliliter. Adjustable flow (high/low speed) ensures filling without waste or splashing, reducing operating time
  • The Zero Cross Contamination function empties the hoses at the end of service, preventing the mixing of incompatible oils
  • The automatic pump enables dispensing without the need for constant supervision, freeing up operating resources and optimizing time
  • Designed to work with engine oil, transmission fluid and coolant, Does NOT work with brake fluid or windshield washer fluid

To watch our in-depth tutorial on the initial set up and calibration of the SFC click here

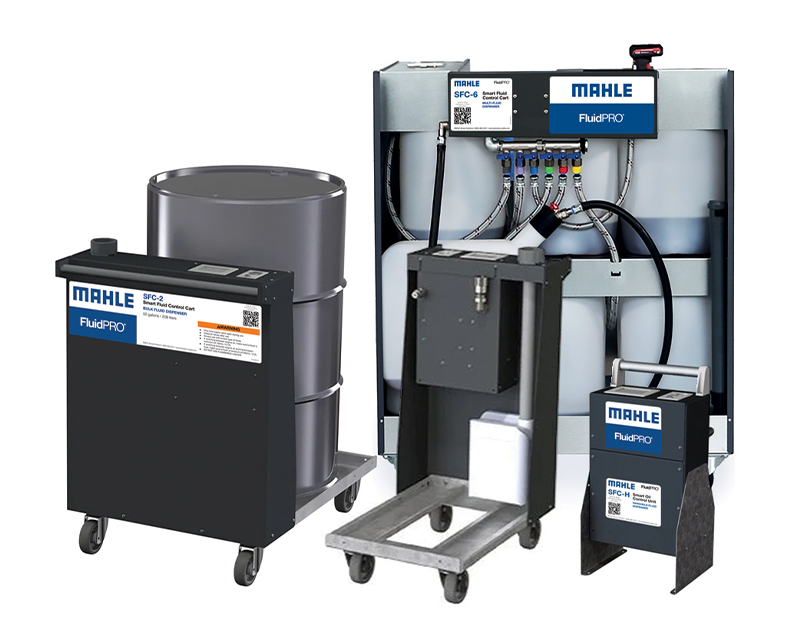

Smart Fluid Control Models

  • Manages up to six different products, ideal for dispensing fluid
  • Supports up to 6 x 30L containers
  • Sealed base plate acts as a spill tray
  • Zero cross contaminating: when switching fluid types, the pump flushes 150 ml into a waste container (holds up to 60 flushes)
  • Waste container is tool-free removable for easy emptying
  • Includes refill spout for 30L containers

  • Supports refill function, allowing bulk purchase of fluids while still using the cart for dispensing
  • Designed to work with 16gal (60L) drums to 55gal (208L) drums

  • Supports refill function, allowing bulk purchase of fluids while still using the cart for dispensing
  • Designed to work with 5gal (20L) jugs to 20gal (70L) drums

  • Mobile pump unit with a carrying handle
  • Can be used standalone or mounted on a cart for increased mobility
  • Suitable for oil and coolant dispensing
  • Ideal for mobile service technicians

Smart Fluid Control Specifications

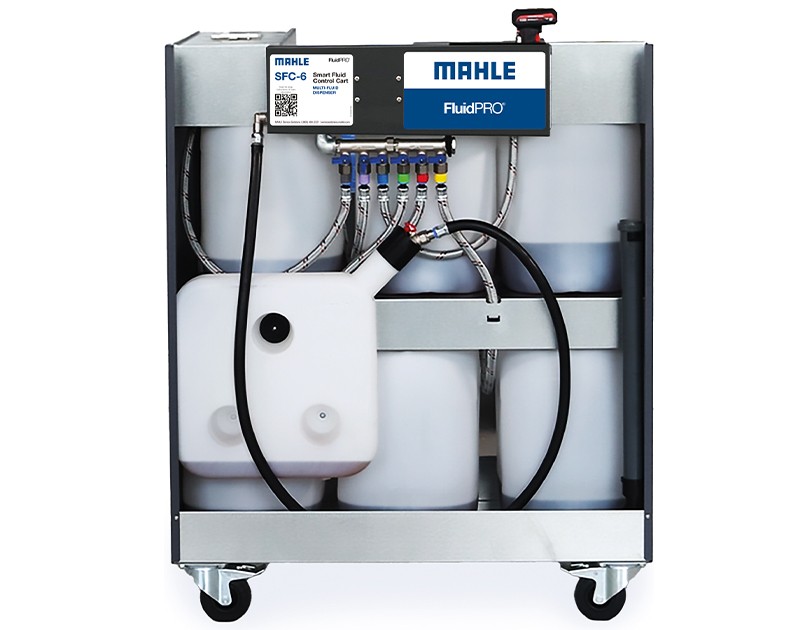

SFC-6 Multi-Fluid Dispenser

Part number 440 80003 01 / 440 80004 00*

Power source** 12V lithium-ion battery

Container type 6x 30L containers

Dimensions 38.26 x 19.40 x 44.60 in (97.2 x 49.3 x 113.3 cm)

Weight 103 lb (46.8 kg)

*Includes 6x 30L containers

**Milwaukee M12; 150-300L battery life per charge; 220L tested with 5W30 oil with 4.0 amp hour battery

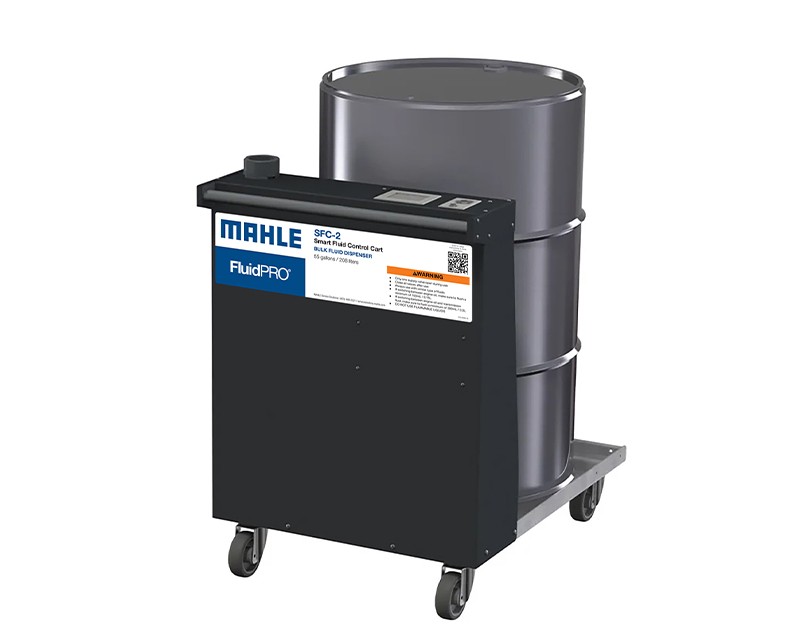

SFC-2 Bulk Fluid Dispenser 55 gal

Part number 440 80002 01

Power source** 12V lithium-ion battery

Container type 55 gal (200L) drums

Dimensions 34.40 x 24.76 x 35.55 in (87.4 x 62.9 x 90.3 cm)

Weight 76 lb (34.5 kg

**Milwaukee M12; 150-300L battery life per charge; 220L tested with 5W30 oil with 4.0 amp hour battery

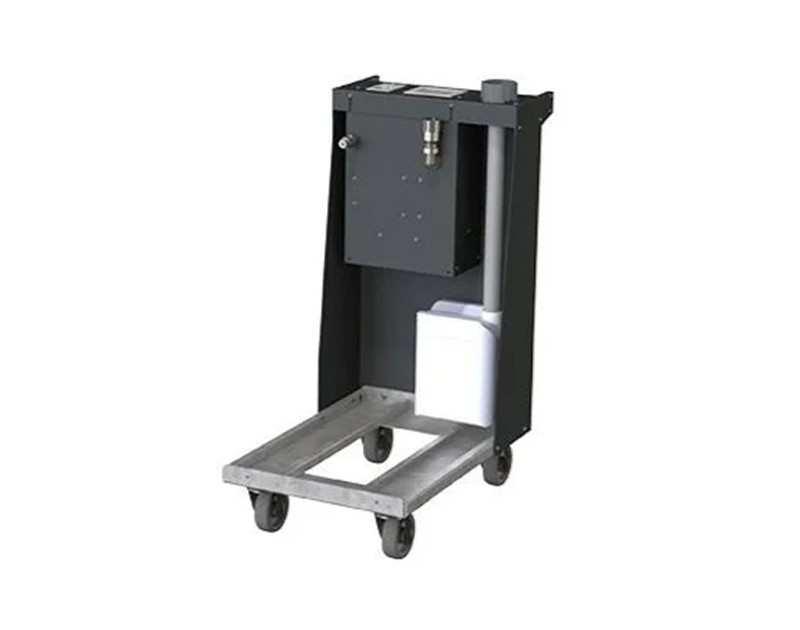

SFC-1 Bulk Fluid Dispenser 35 gal

Part number 440 80001 01

Power source** 12V lithium-ion battery

Container type 35 gallon (132L) containers

Dimensions 26.53 x 16.89 x 35.55 in (67.4 x 42.9 x 90.3 cm)

Weight 65 lb (29.5 kg)

**Milwaukee M12; 150-300L battery life per charge; 220L tested with 5W30 oil with 4.0 amp hour battery

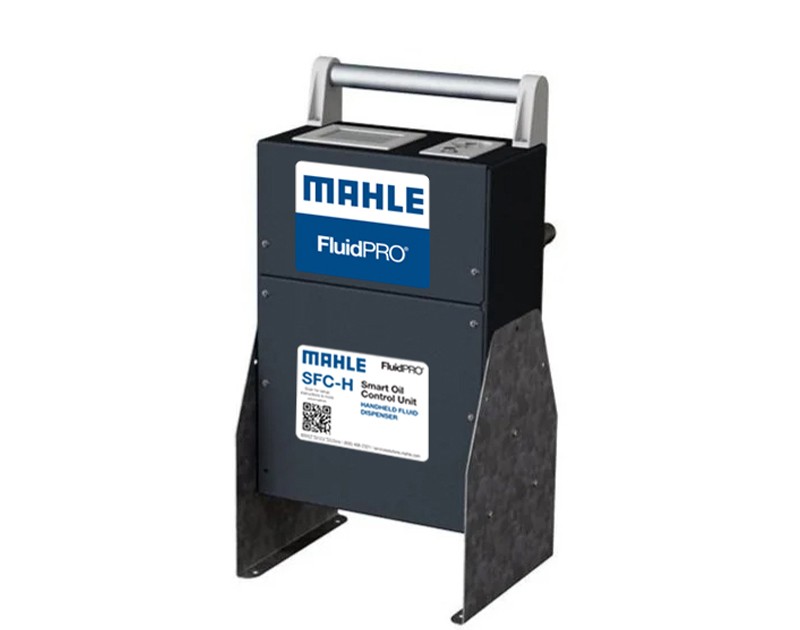

SFC-H Handheld Fluid Dispenser

Part number 440 80000 01

Power source** 12V lithium-ion battery

Container type Variable size containers

Dimensions 11.85 x 9.21 x 20.8 in (30.1 x 23.4 x 52.9 cm)

Weight 22.48 lb (10.2 kg)

**Milwaukee M12; 150-300L battery life per charge; 220L tested with 5W30 oil with 4.0 amp hour battery

Smart Fluid Control Accessories / Flyers

Recommended Accessories

340 80000 00 Spare 30L containers

340 80001 00 Drum Refill kit (for SFC-2 and SCFC-1 only)

340 80002 00 Extension hose for Drum Refill kit - 9.8 ft (300cm)

340 80003 00 Transmission & differential fill adapter set

Product Flyer

Smart Fluid Control Overview Flyer  [PDF; 1007 KB]

Prop 65 Warning

WARNING: This Product Contains chemicals know to the state of California to cause cancer, and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Your Smart Station

The added value of the FluidPRO® Smart Fluid Control station is its ability not only to record fluid usage data, but above all to send it to a portal that allows for effective management.

Everything is tracked and organized: quantitative data, fuel type and consumption, vehicle data, operator, etc.

The portal manages different access levels, depending on the role of the person consulting it (distributor, dealer, store manager, user).

When the stock falls below the alarm threshold, the system manages and monitors the residual fluid, recording accesses and services.

These features are included in the sale price for the first six months of sale and are renewable annually with the purchase of a 12-month subscription.
