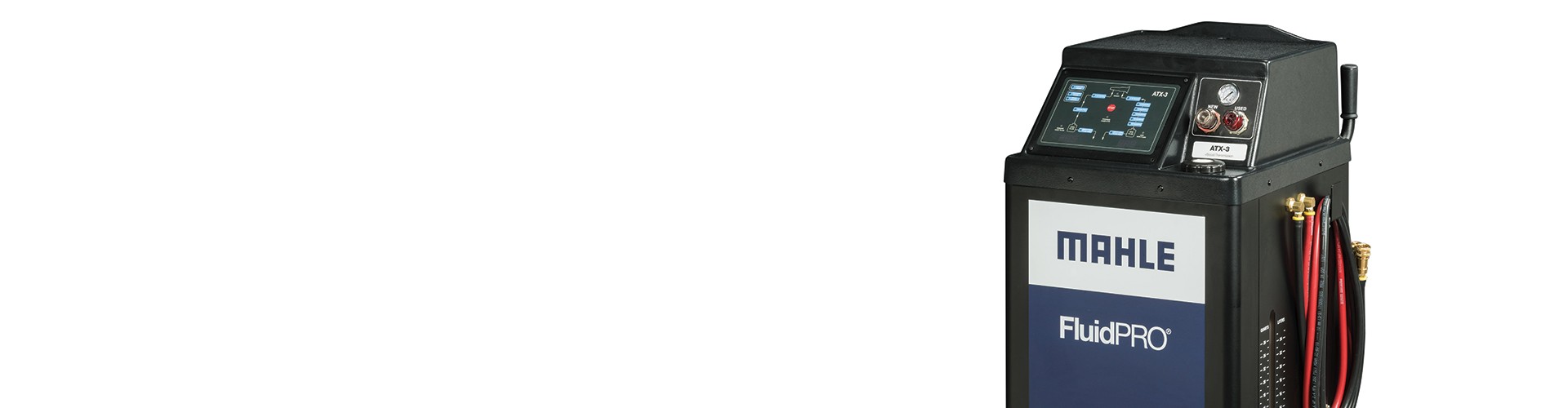

The FluidPRO ATX-3 Automatic Transmission Fluid Exchange System offers precise and accurate fluid measurement and simple operation with minimal technician input to maximize efficiency.

FEATURES

  • Adaptable 'Dipstick' or 'Cooler' mode selector, start engine indicator (ATX-3 only).
  • Electronic diode illuminated keypad, fluid flow direction indicator verifies correct hook-up.
  • Transmission diagnostic pressure gauge for a more effective exchange process.
  • New and used fluid sight glasses improve service accuracy.
  • Automatic fluid level adjustment +/- 1/2 quarts.
  • Digital weight scale technology for accurate fluid exchange.
  • Patented bypass circuit increases safety for vehicle protection.
  • Fast full exchange service times of 2 to 5 minutes and 8 to 14 minutes in 'Dipstick' mode.

Transmission Fluid Exchange System

Model Name: ATX-3 | Part Number: 400 80009 00

Product Specifications

Adapters Cooler line connection. Valved couplers for minimum spill. Standard adapters for Ford, GM, Chrysler, & Universal (most Asian).

Controls Microprocessor with digital keypad & light emitting diodes

Dimensions (H x W x D) 45 in x 28 in x 26.5 in (112 cm x 70 cm x 67 cm)

Fluid Tanks / Types 26 quarts (24.6 liters) each for both new & used fluids / Multiple fluid capability

Hoses 10 ft. (3 m) black & red (exchange); 8 ft. (2.5 m) black (empty used tank) ATX-3+Boost also includes 5 ft. (1.5 m) clear, attached to 8 ft. (2.5 m) lack hose for dipstick mode.

New Fluid Pump Positive displacement gear pump, 4 quarts (3.8 liters) per minute/includes diaphragm pump, 7.2 quarts (6.84 liters) per min. Diaphragm pump increases fluid suction rate in low-flow/temperature controlled transmission in both ATX-2+Boost & ATX-3+Boost units.

Operating Range Cooler Mode: 32° to 122°F (0° to 50°C) Dipstick Mode: 42° to 122°F (5.5° to 50°C)

Power Source 12 VDC - 10 Amp

Process Time 3 to 6 minutes average full exchange. Dipstick Mode is available on the ATX-3+Boost with 8 to 14 minutes* average full exchange.

Scale Accuracy ±0.03% over usable range

Warranty 1 Year–parts & labor

Weight ATX-2+Boost: 242 lbs. (110 kg) / ATX-3+Boost: 244 lbs. (111 kg)

*Based on 12 quart exchange

Recommended Accessories

300 80051 00 ATX Sight Glass Kit, Sight Glass Bowl, Filter, O'Ring (2 ea)

300 80052 00 ATX By-Pass Adapter Hose

300 80061 00 ATX Flush Canister, In-Line Applications, 14 oz Capacity

300 80014 00 Adapter Hose, Straight, Connects Machine to Vehicle

300 80015 00 Adapter Hose, 90 degrees, Connects Machine to Vehicle

300 80076 00 ATX Dipstick Wand Assembly, 5/16" OD

300 80077 00 ATX Dipstick Wand Assembly, 1/4" OD

300 80112 00 ATX Dipstick Wand Assembly, 3/8" OD

Complete List of ATX Adapters

Additional Adapters [PDF; 1076 KB]

Flyer & Operation Manual

ATX-3 Product Flyer [PDF; 1329 KB]

ATX-3 Operation Manual [PDF; 457 KB]
