Heavy duty forklift jacks that have set the industry standard for over 40 years.

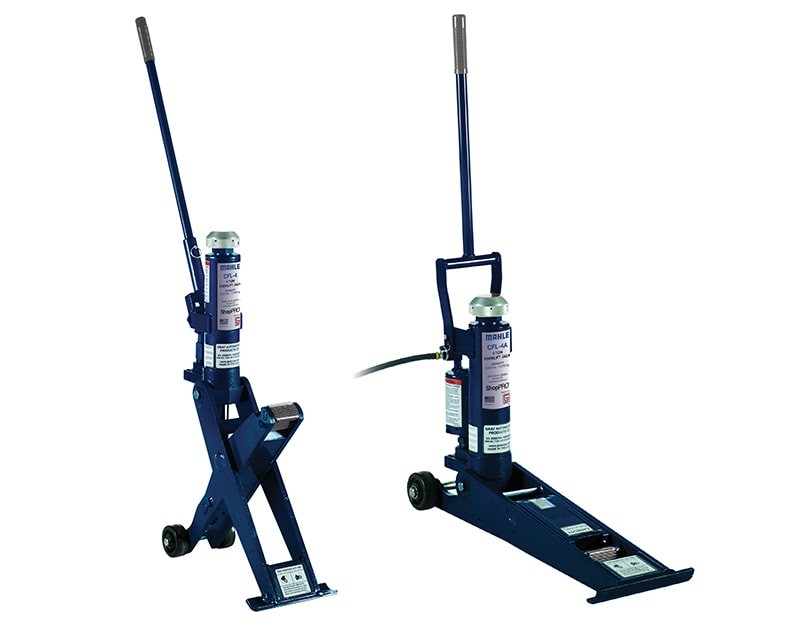

7.5 Ton Forklift Jack

Model Number: CFL-7 | Part Number: 485 80087 00

Features

  • Two position lift pad that easily adjusts to handle flat or edged surfaces
  • Low starting height of 2¼" allows maximum flexibility
  • Hold-to-Run™ release knob provides a slow descent rate with precise operator control

Also Available with Air Assist

Product Specifications

Capacity 15,442 lb (7,004 kg)

Maximum Lift Height 16 in (41 cm)

Power Hydraulic

Required Air Pressure N/A

Reach (Raised Position) 7 in (18 cm)

(Distance from Hydraulic Cylinder to Lift Pad)

Width 10 in (25 cm)

Starting Pad Height (Lift Arm Noch) 2.3 in (5.8 cm)

Starting Pad Height (Serrated Lift Pad) 2.5 in (6.3 cm)

Shipping Weight 93 lb (42 kg)

Additional Models

485 80088 00, CFL-7A 7.5 Ton Forklift Jack - Air Assist

4 Ton Forklift Jack

Model Number: CFL-4 | Part Number: 485 80085 00

Features

  • Two position lift pad that easily adjusts to handle flat or edged surfaces
  • Low starting height of 2¼" allows maximum flexibility
  • Hold-to-Run™ release knob provides a slow descent rate with precise operator control

Also Available with Air Assist

Product Specifications

Capacity 8,000 lb (3,629 kg)

Maximum Lift Height 16 in (41 cm)

Power Hydraulic

Reach (Raised Position) 7 in (18 cm)

(Distance from Hydraulic Cylinder to Lift Pad)

Width 8 in (20 cm)

Starting Pad Height (Lift Arm Noch) 2.3 in (5.8 cm)

Starting Pad Height (Serrated Lift Pad) 2.5 in (6.3 cm)

Shipping Weight 68 lb (31 kg)

Additional Models

485 80086 00, CFL-4A 4 Ton Forklift Jack - Air Assist
