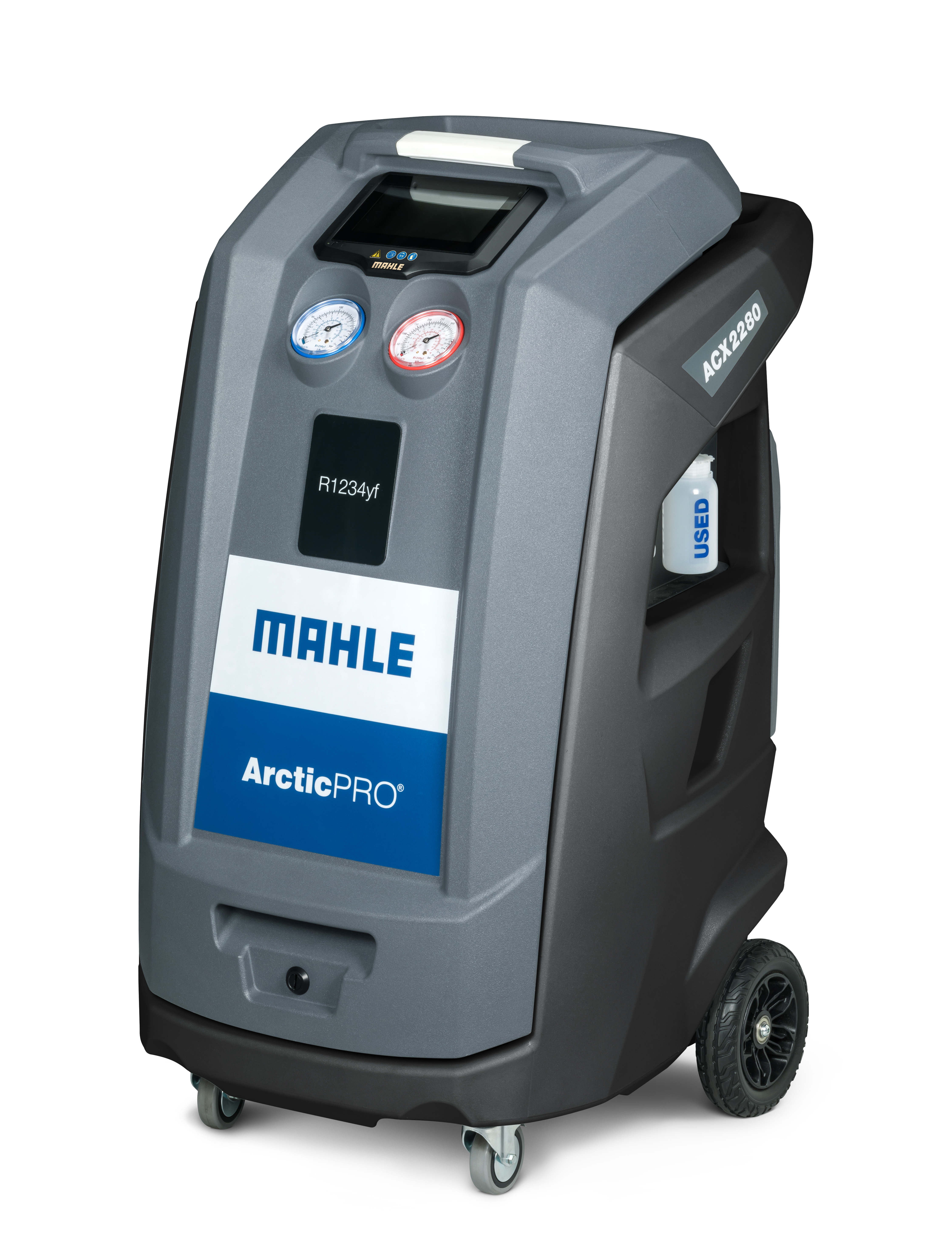

ACX2280 R1234yf Refrigerant Handling System
Part Number: 460 80449 00
FEATURES
- State-of-the-Art. Ergonomic design, 7" capacitive touch screen and intuitive user interface sets a new industry standard.
- Best In Class Serviceability New ergonomic hinged service door simplifies unit service.
- Status Indicator. LED light indicates status visible from anywhere in the workshop.
- Smart. iOS and Android capable phone app allowing remote service session mirroring and advanced functions.
- Automatic Updates. Permanent wireless software updates, ensuring you always have the latest features.
- Oil System Management. Automatic weighing of recovered oil, allowing accurate replenishment of oil removed during service.
- Remote Support for Technicians. Allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
- Data Management & Reporting Metrics. Ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
- Integrated Refrigerant Identifier. Adds additional convenience and saves time on services.
- Customer Service. Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage.
- Network Printing. Retains valuable service records, network printing capability to print services provided for customer.
OPTIONAL FEATURE
- Thermal Printer. Allows printing of service reports.

ACX2280 Product Details
Product Specifications
Certifications SAE J2843, SAE J2888, UL 1963
Charge Performance +/- 0.5 oz. at 70° to 75°F (+/- 15g at 21° to 24°C)
Recovery Performance 95% at 70° to 75°F (21° to 24°C) within 30 minutes
Operation Fully Automatic
Charging Cylinder 30 lb. (13.6 kg) DOT
Compressor 3/8 HP-0.279kW
Dimensions (H x W x D) 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)
Weight 215 lb. (98 kg)
Display Color, 7” Capacitive Touch Screen
Filter Drier Capacity 150 lb. (68 kg) spin-on type
Hoses 9 ft. (2.75 m)
Hybrid Function Certified
Languages English, French, Spanish
Operating Ranges 50 degrees - 122 degrees F (10° to 50°C)
Power Source 120 VAC - 60 HZ - 12 AMP
Vacuum Pump 2 CFM dual stage
Warranty 1 Year Labor, 2 Years Parts
Recommended Accessories
360 83254 00 Filter Combo
026 80785 00 Dust Cover
026 80698 00 Oil Charge Bottle
026 80699 00 Oil Drain Bottle
360 82948 00 Red Hose R1234YF
360 82949 00 Blue Hose R1234YF
360 82951 00 Quick Release Low Side Coupling R1234YF
360 82950 00 Quick Release High Side Coupling R1234YF
360 82744 00 Calibration Check Ball
360 82953 00 Adaptor LP (External Bottle) USACME 1/2 LH R1234YF
026 80635 00 LD-2 Leak Detector R1234YF
026 80700 00 Vacuum Pump VE215
011 80070 00 Vacuum Pump Oil (Quart)
360 83269 00 Thermal Printer Installation Kit
360 83110 00 Thermal Printer Paper 5PK
